Extension Lead 10m 32A 230V Blue IP67 Watertight — 2.5mm Cable

Description

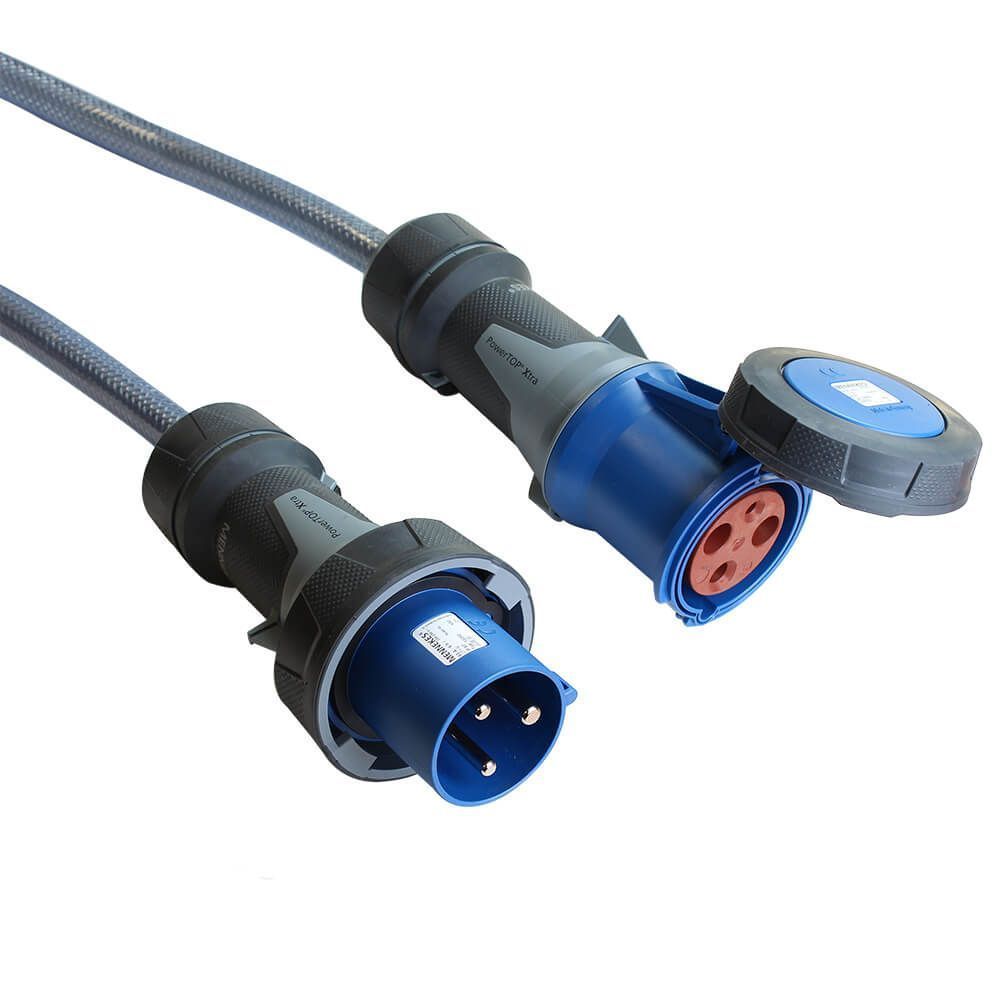

A 10 metre 32A extension lead on 2.5mm cable with IP67 watertight blue industrial plug and socket. For a 32A generator outlet feeding a trailer or van where the connection may sit on wet ground.

Features & Benefits

• 10 metres of 2.5mm cable, sized for 32A.
• 32A blue industrial plug and socket.
• IP67 watertight — sealed against puddles, hose-down and wet ground. The right choice for wash-down areas and waterlogged sites.
• Check the socket on your generator first. The plug on this lead must match it: 13A is the square three-pin domestic plug, 16A is the round blue industrial plug, 32A is the larger round blue plug and 63A is the largest.
• Read the full technical specification in the Specs tab.

Frequently asked questions

How much power can this 32A lead carry?

Up to 32A at 230V, which is about 7.4kW (32 × 230 = 7,360W). Add up the wattage of everything plugged in at the far end and keep the total below that figure. If it comes out higher, you need a lead and a generator outlet with a higher amp rating.

Will this lead fit my generator?

It fits generators with a blue 32A industrial socket, the larger round three-pin outlet. A 16A plug will not go into a 32A socket, and a 32A plug will not go into a 16A one. The GB12000VL AS auto-start generator can be built with a 32A outlet. Check the outlet on your own machine before you order.

What does IP67 mean on an extension lead?

IP67 means the connectors are dust-tight and protected against temporary immersion in water, as long as the plug is fully mated or the cap is closed. That makes this lead the safer choice on wet ground, near wash-down areas and at all-weather events. For sheltered or dry pitches, the 32A IP44 lead costs less.

Should I unwind the lead fully before use?

Yes. Always uncoil the whole lead before you switch on. Cable left in a coil cannot shed heat, and under a heavy load it can overheat.
