Description

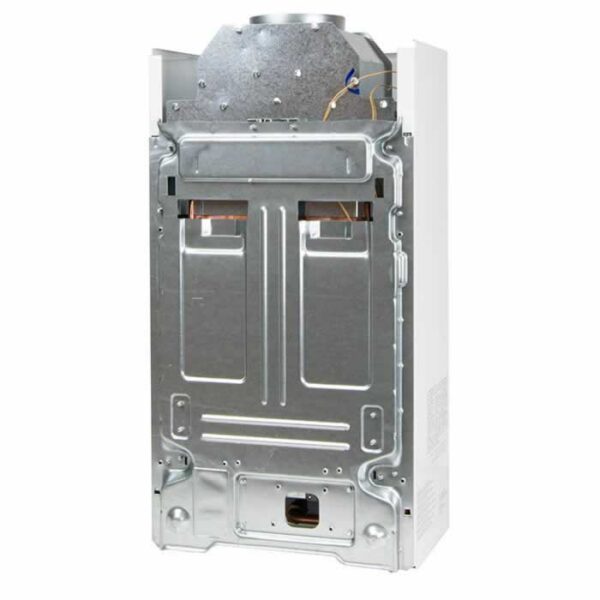

6 Litre Water Heater Open Flue EUP6

The new Morco EUP6 6 Litre water heater is an EUP compliant direct replacement for the D61B, D61E and MP6. The EUP6 can be installed easily in place of the previous models. The flue diameter is the same at 90mm, so if you are replacing a D61 you can use the existing flue. The EUP6 has a piezo ignition and is not available with an electronic ignition.

The EUPFK fitting/conversion kit will be required in order to fit the water heater as the gas and water connections are different to those on the D61 and MP6. This can be found in the related items section below. If you require a 10mm fitting kit, please order the EUPFK10 instead.

There is a conversion document available on the troubleshooting section of this website and within the fitting/conversion kit to make the replacement of a D61 with an EUP6 more straightforward.

Morco EUP6 6L LPG Caravan Water Heater Specification
Installation Internal wall mounted
Dimensions (H x W x D) 550mm x 256mm x 245mm
Weight 8kg
Exhaust system Open flued
Ignition method Piezo
Gas consumption – Propane 0.93kg/hr
Hot water delivery capacity 6 ltr/min (Max) at a 25°C rise
Water pressure 0.2 – 10bar
Flue Type Vertical 90mm diameter (not included)
Connections Water – 1/2″ Bspm, Gas – 1/2″ Bspm
Gas Type/Pressure Propane 37mbar or Butane 28-30mba

Extras

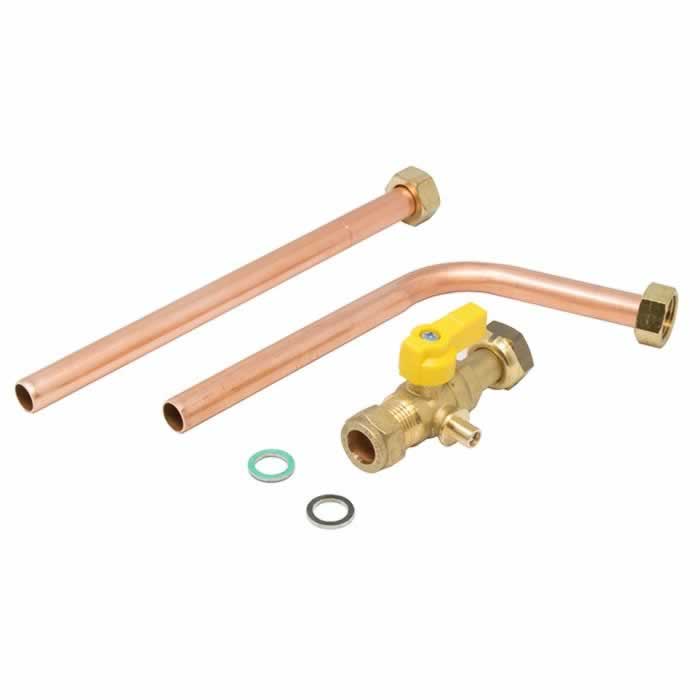

Fitting Kit: This installation kit is required for EUP6 & EUP11 water heater installations. It contains a 15mm gas isolation valve.

Flue Conversion Kit – These are compatible with the EUP6, MP6, D61B and D61E.
Diameter 90mm – Terminal height 570mm – Inner flue pipe length: 500mm
